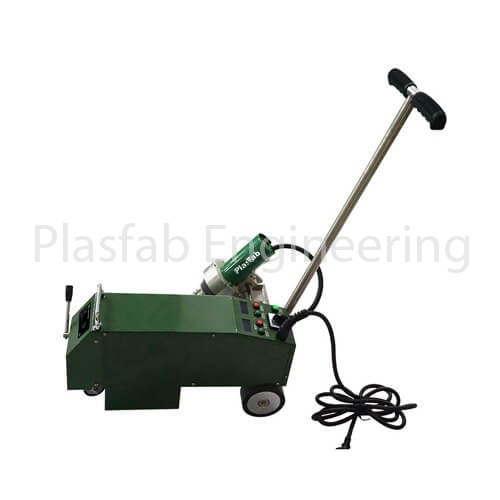

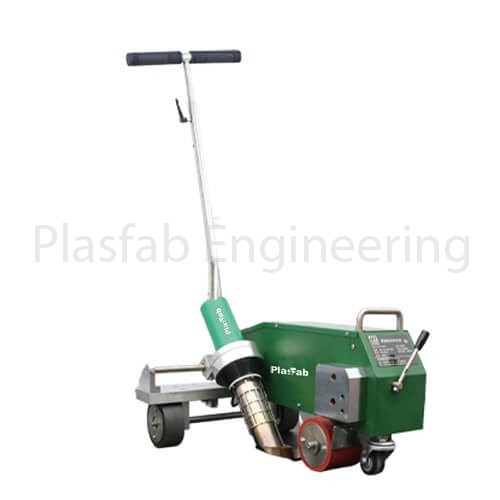

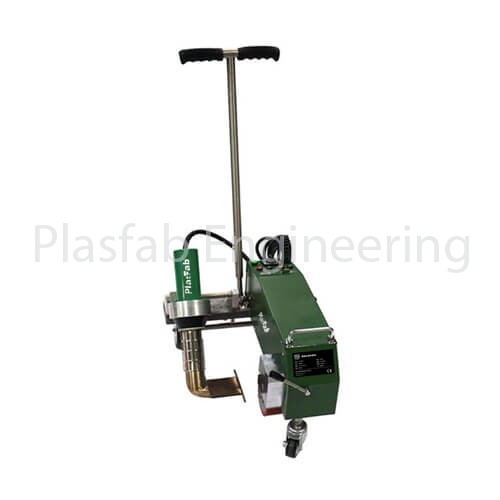

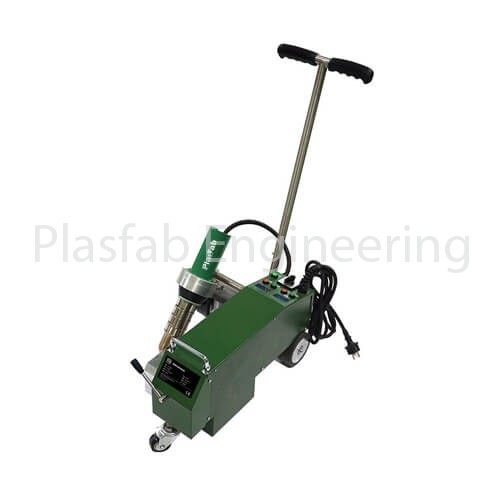

Asphalt Hot Air Welder PFE-WP2

• The flameless modified SBS welder uses hot air to realize the welding of modified SBS, which is firm and reliable, and is widely used in non-curing edge banding.

• This machine is equipped with a customized and specially developed 80mm wide tuyere. The width of the welding seam can reach 80-100mm during actual welding, which is enough to meet the industry’s requirements for the welding width of asphalt materials.

• Closed loop control.

This machine can not only display the welding temperature and welding speed, the control system adopts closed-loop control, regardless of the external voltage change, or the welding direction up or down under the change of the external environment, such as negative feedback automatically adjusts the set temperature and speed to make welding The parameters are more stable and the welding quality is more reliable.

• Accept small orders.

• Satisfy small batch customization services.

ADVANTAGE

80mm wide nozzle meets the width required by industry specifications

This machine is equipped with a customized and specially developed 80mm wide tuyere. The width of the welding seam can reach 80-100mm during actual welding, which is enough to meet the industry’s requirements for welding width of asphalt materials

Intelligent control system

The single-chip control system is simple and intuitive to operate.

High-efficiency welding nozzle

Anti-scald protection design maximizes heat and air volume.

The silicone pressure roller and metal pressure roller can be modified according to different SBS, so that the pressure roller and the walking roller are balanced and a good welding seam is maintained. .

Precision positioning system

The positioning system ensures that the walking is straight and unbiased.

Specifications

Model LST-WP2 LST-WP2
Voltage 230V 230V
Power 4200W 4200W
Temperature 50~620℃ 50~620℃
Welding speed 1-10m/min 1-10m/min
Welding seam 80mm 80mm
Dimensions (length × width × height) 543x370x320mm 555x358x304mm
Net weight 37kg 37kg
motor Brush
Air volume Not adjustable 70-100%
Certification CE CE
Warranty 1 year 1 year

Application

Fast and efficient welding of TPO

LST-WP1
