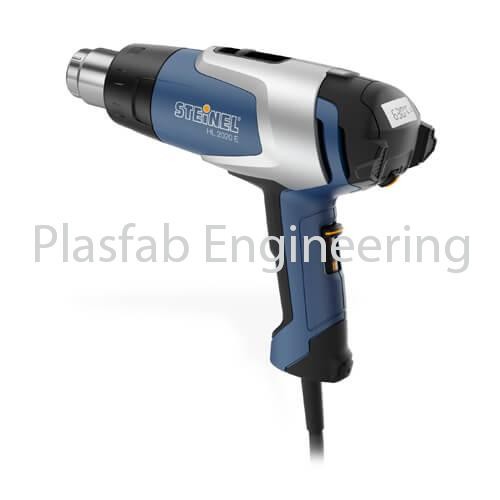

Hot Air Tool – HL 2020 E Case

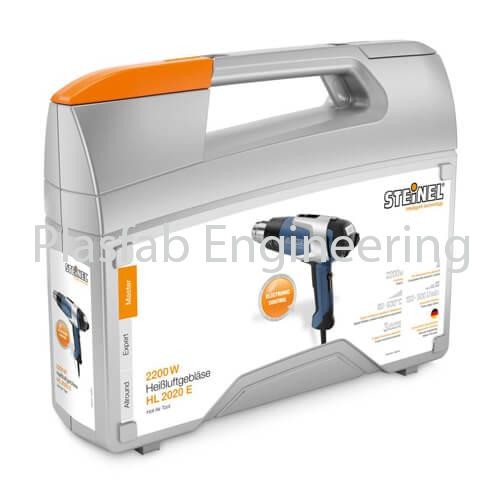

The master class. Electronically controlled hot air tool 2020 E with LCD. Professional technology for shaping tiles, desoldering circuit boards, welding plastics, drying repair filler, shrinking cable sleeves, soldering pipes and a whole lot more. Adjustable by joystick from 80 °C – 630 °C in 10 °C steps. Residual heat indicator to prevent burns. Supplied in plastic case, includes 9 mm reduction nozzle.

Categories: , ,

Features

The high-end model.

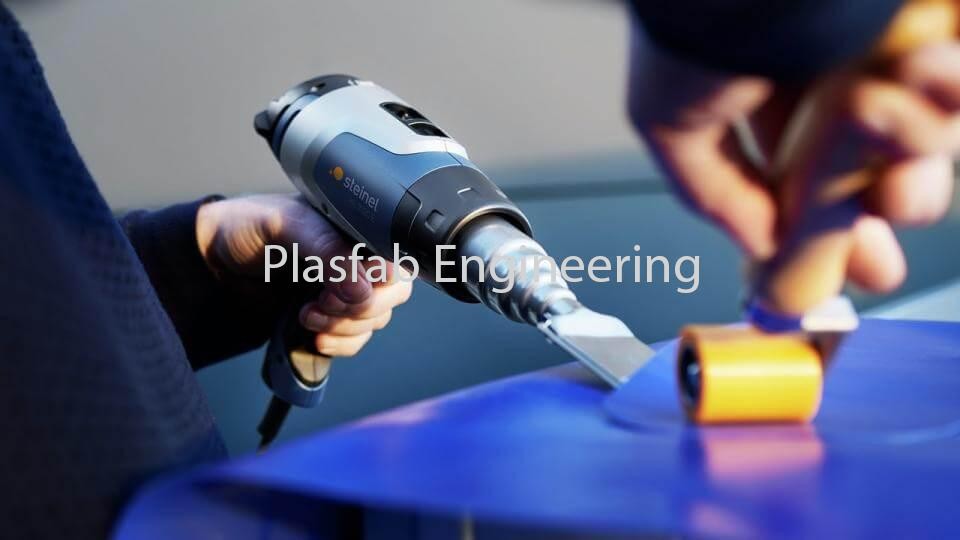

Professional DIYers opt for the sturdy HL 2020 E hot air tool. The electronically controlled thermo tool delivering 2200 watts of power is easily operated by joystick, regulates temperature from 80 to 630 °C and provides user convenience with its LCD display. The residual heat indicator warns the user that the outlet nozzle is still hot. Precision adjustable heat and powerful blower make this high-end tool the ideal choice for virtually any application – shrinking on cable sleeves, welding, shaping and many other challenging jobs.

Product Details

Optimised weight balance

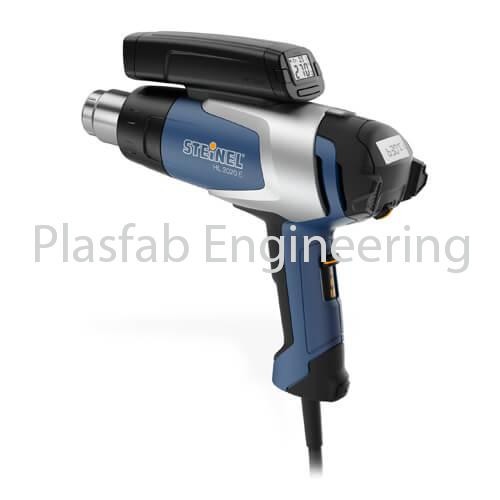

Optional temperature scanner HL Scan

Heat build-up warning

3-stage airflow

Temperature easy to set by joystick

Residual heat indicator

Non-slip standing surface

Hanging ring

Replaceable power cord

Technical Specifications

Technical Specifications
General information
European Article Number (EAN) 4007841008192
Temperature 80 – 630 °C
Airflow rate 150 – 500 l/min
Temperature setting in 10°C steps by joystick
Settings made via joystick
Temperature display LCD display
Airflow control Continuous
Programming function No
Loc function No
Residual heat indicator Yes
Cool function No
Motor, type Brush motor
Heating element Ceramic heating element
Function, hanger Yes
Function, life expectancy, motor 600 Std
Function, life expectancy, heating element 600 Std
Replaceable heating element No
Restart protection No
Temperature scanner Yes
Fine dust filter No
Thermal cut-out Yes
Thermostat Yes
ESD No
Nozzle receiver, type 34
Cord length 2.2 m
PU1, net weight 0,88 kg
Electrical equipment
Mains power supply 220 – 230 V / 50 – 60 Hz
Output 2200 W
General
Dimensions (L x W x H) 253 x 86 x 200 mm
Manufacturer's Warranty 3 years
PU1, EAN 4007841008192
