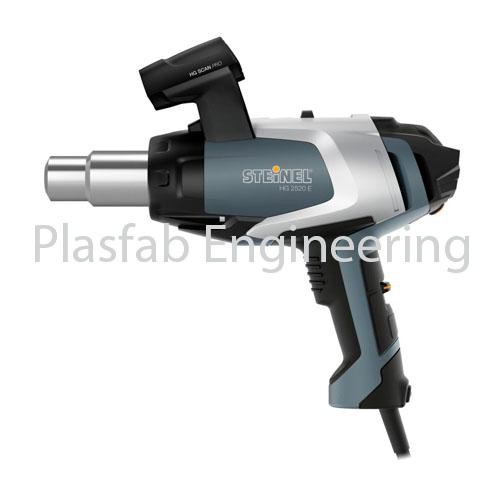

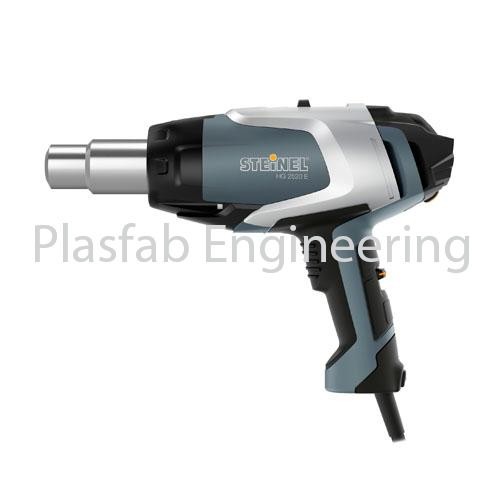

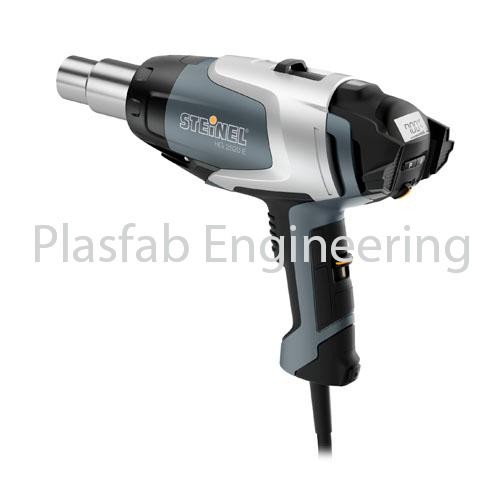

Hot Air Tool – Professional Line – HG 2520 E Case

The reference in pistol form. Electronically controlled hot air tool HG 2520 E with brushless motor, digital temperature adjustment by joystick from 50 – 700 °C. Airflow control from 150 – 500 l/min. Includes LCD display and residual heat indicator. Suitable for use on construction sites.


The reference in gun form. With brushless motor.
More power. More heat. More life. STEINEL’s strongest gun-type hot air tool is equipped with a powerful and extremely durable brushless motor that blows hot air at 4,000 Pa with absolute precision on whatever the object you work on. The temperature can be varied by joystick with one hand in 10 °C steps and read from the clear LCD information display at any time. It’s just as easy to adjust the airflow rate between 150 and 500 l/min and select any of the four individually tailored programmes. This professional hot air tool is perfect for construction site use and also takes screw-on “professional nozzles”.

Technical Specifications

Technical Specifications
General information
European Article Number (EAN) 4007841351601
Temperature 50 – 700 °C
Airflow rate 150 – 500 l/min
Temperature setting in 10°C steps by joystick
Settings made via joystick
Temperature display LCD display
Airflow control Continuous
Programming function Yes
Loc function Yes
Residual heat indicator Yes
Cool function No
Motor, type Brushless
Heating element Ceramic heating element
Function, hanger Yes
Function, life expectancy, motor 10000 Std
Function, life expectancy, heating element 800 Std
Replaceable heating element Yes
Restart protection No
Temperature scanner Yes
Fine dust filter No
Thermal cut-out Yes
Thermostat Yes
Nozzle receiver, type 30
Cord length 3 m
PU1, net weight 1,283 kg
Electrical equipment
Mains power supply 220 – 230 V / 50 – 60 Hz
Output 2300 W
Dimensions (L x W x H) 286 x 96 x 207 mm
Manufacturer's Warranty 1 year
PU1, EAN 4007841351601

Product Details

Single-hand operation by joystick

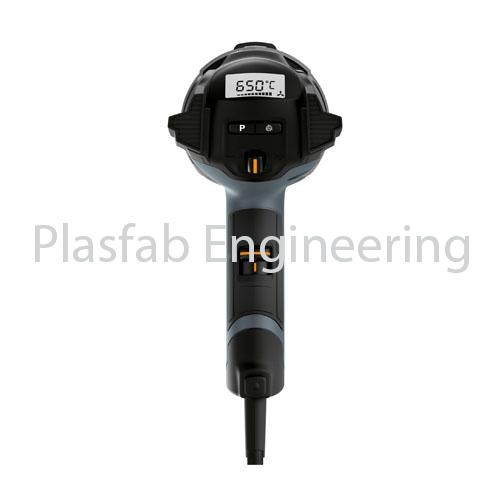

LCD information display always in view

Residual heat indicator

Replaceable power cord

Plug-in heating element

Non-slip standing surface

Hanging ring

Suitable for screw-on “Professional nozzles”

Optional temperature scanner HG Scan
