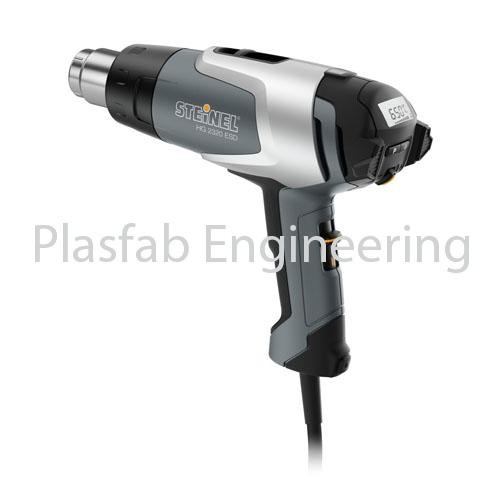

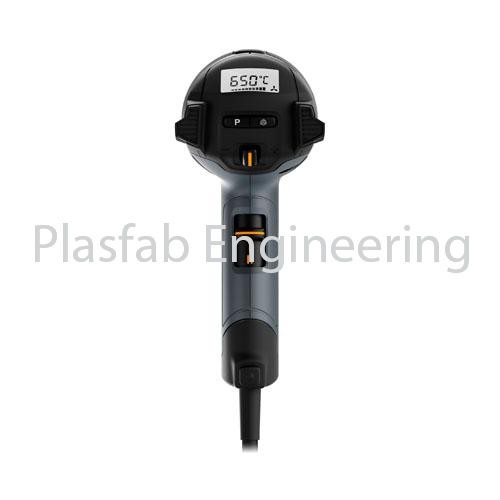

Hot Air Tool – Professional Line – HG 2320 ESD

Precision digital control. Electronically controlled HG 2320 E hot air tool. 2300 W, digital temperature setting by joystick from 80 – 650 °C, temperature indicated in 10 °C steps on LCD display. Airflow regulation in 2 stages of 150 and 500 l/min. ESD-compliant, meets the requirements defined in IEC DIN EN 61340-5-1; part 5-1:2008 ff.


Absolute safety in electronics manufacturing.
Fits perfectly in your hand and a real pleasure to use: the HG 2320 E comes with an impressive 2300 W of power and delivers hot air at between 80 – 650°C. Temperature is very easy to control via the joystick, giving you absolute precision. Together with the residual heat indicator, the LCD information display ensures additional certainty while the four individually selectable programmes provide extra flexibility. Coming with full ESD compliance, the HG 2320 ESD does not generate any static charges, making it an excellent choice for use in EPAs (ESD Protected Areas). If the cable should ever get damaged, it is very easy to change.

Technical Specifications

Technical Specifications
General information
European Article Number (EAN) 4007841020811
Temperature 80 – 650 °C
Airflow rate 150 – 500 l/min
Temperature setting in 10°C steps by joystick
Settings made via joystick
Temperature display LCD display
Airflow control Settings
Programming function Yes
Loc function Yes
Residual heat indicator Yes
Cool function No
Motor, type Brush motor
Heating element Ceramic heating element
Function, hanger Yes
Function, life expectancy, motor 1000 Std
Function, life expectancy, heating element 600 Std
Replaceable heating element No
Restart protection No
Temperature scanner Yes
Fine dust filter No
Thermal cut-out Yes
Thermostat Yes
Nozzle receiver, type 34
Cord length 3 m
PU1, net weight 1,044 kg
Electrical equipment
Mains power supply 220 – 230 V / 50 – 60 Hz
Output 2300 W
Dimensions (L x W x H) 253 x 87 x 200 mm
Manufacturer's Warranty 1 year
PU1, EAN 4007841020811


Product Details

Optimised weight balance

Non-slip standing surface

2-stage airflow

LCD information display and programmes

Temperature easy to set by joystick

Residual heat indicator

Heat build-up warning

Hanging ring

Replaceable power cord
