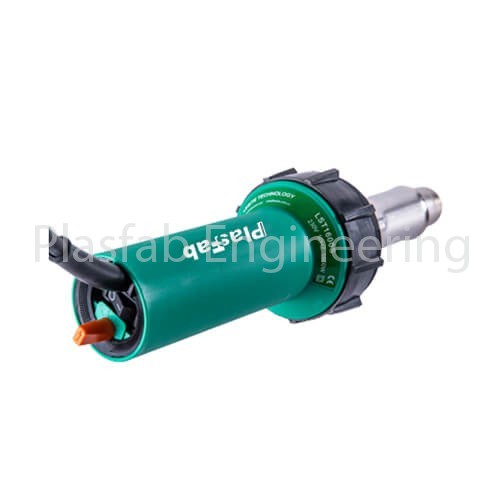

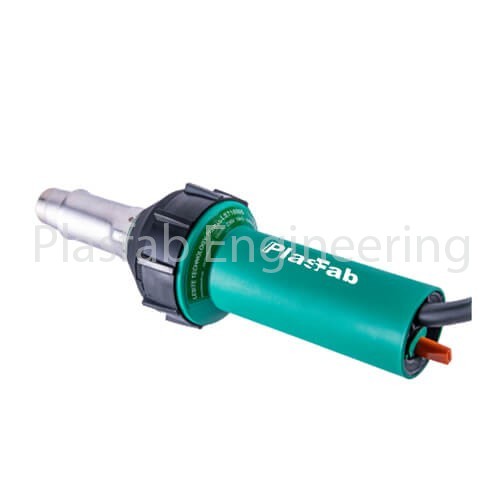

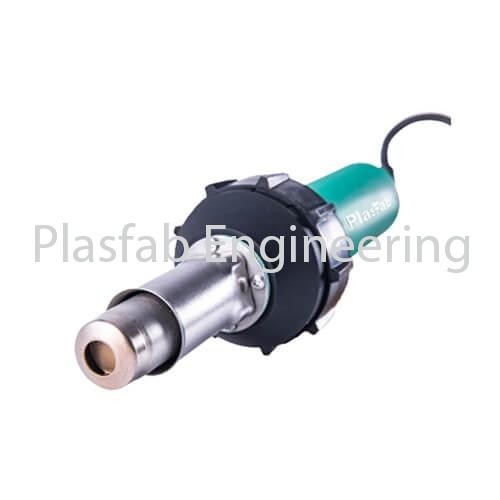

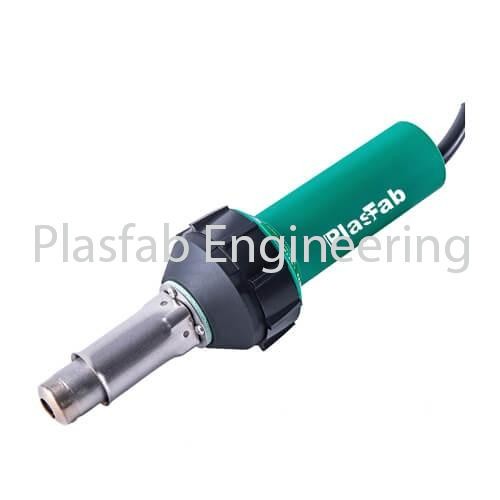

Hot Air Welding Gun PFE1600S

This hot air welding gun adopts ergonomic design, which is more portable, practical and comfortable. Equipped with a newly upgraded motor, high-quality waterproof switch and durable heating core make this air gun popular among users. This hot air welding gun is widely used in welding and processing of plastic film materials, plates, pipes, and plastic floors. It can also be used for thermoforming, heat shrinking, drying, and ignition operations.

Categories: ,

ADVANTAGE

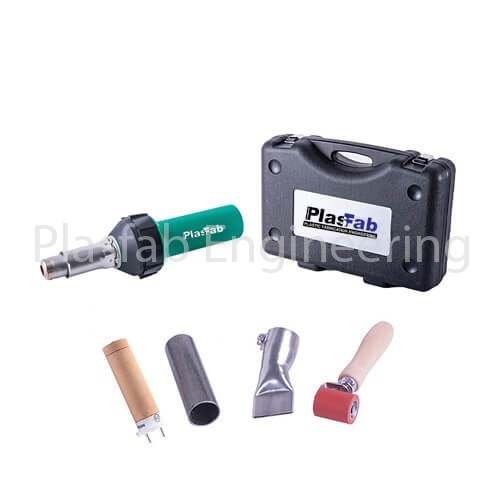

1. Welding nozzle

A variety of stainless steel welding tips can be freely selected according to application requirements.

2. Heating core

Imported heating wire, high temperature resistant ceramics and silver-plated terminals are selected, which can work continuously for a long time under high temperature environment.

Three, dynamic balance

All welding torches have undergone dynamic balance testing to ensure stable air flow and no vibration during use.

Fourth, the temperature is adjustable

The temperature can be adjusted freely between 20-620℃, which is safe and reliable.

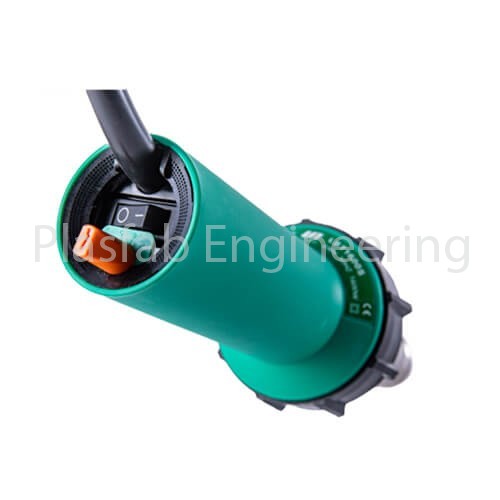

Five, handle

Ergonomically designed, it is convenient to hold, more comfortable to use for a long time, and effectively improves construction efficiency.

Specifications

model LST1600S
Rated voltage 230V / 120V
rated power 1600W
Temperature adjustment range 50~620℃
Air volume Max 180 L/min
Wind pressure 2600 Pa
Body weight 1.05kg
Handle diameter Φ58 mm
Digital display No
Motor Brushed
Certification CE
Warranty 1 year

Application

Welding of polypropylene plastic profiles

Car interior lining welded PP board

Welded plastic tank

Welding of roof TPO membrane
