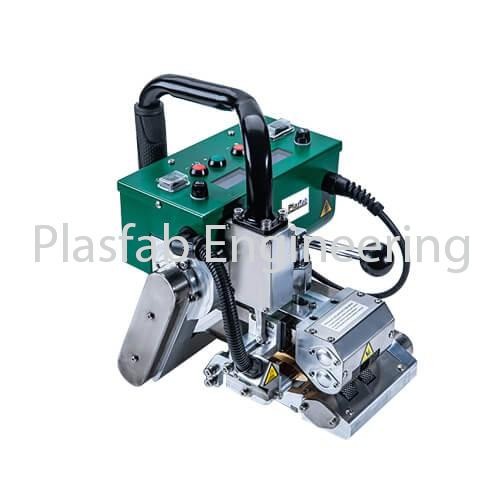

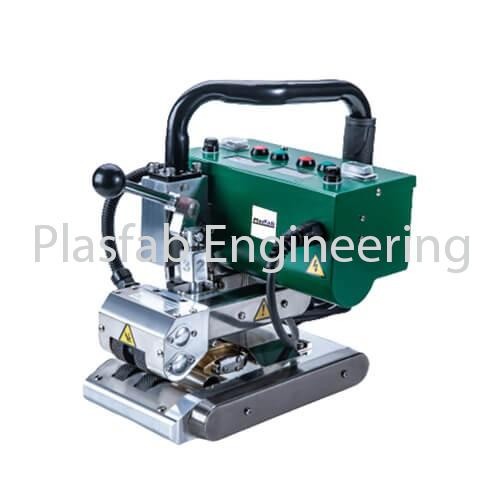

Contract HDPE Hot Wedge Welding Machine PFE-GM1

• Compact hot wedge welding.

This welding machine adopts advanced thermal braiding structure, which is smaller in size, lighter in weight and larger in power. It is suitable for welding various hot film materials of 0.2 to 2.0 mm. It has two-way film forming and one-way same side film forming machines. The product is suitable for the construction of anti-seepage projects in tunnels, subways, water conservancy, aquaculture, ponds, landfills, chemical mines, etc., sewage treatment, roof waterproofing and other fields.

• Meet the voltage requirements of 120V and 230V in different countries and the plug requirements of EU standards, American standards, and British standards.

• Accept small orders.

• Satisfy small batch customization services.

This machine can not only display the welding temperature and welding speed, the control system adopts closed-loop control, regardless of the external voltage change, or the welding direction up or down under the change of the external environment, such as negative feedback automatically adjusts the set temperature and speed to make welding The parameters are more stable and the welding quality is more reliable.

Categories: ,


Products of the same level are light in weight, small in size and high in welding efficiency.

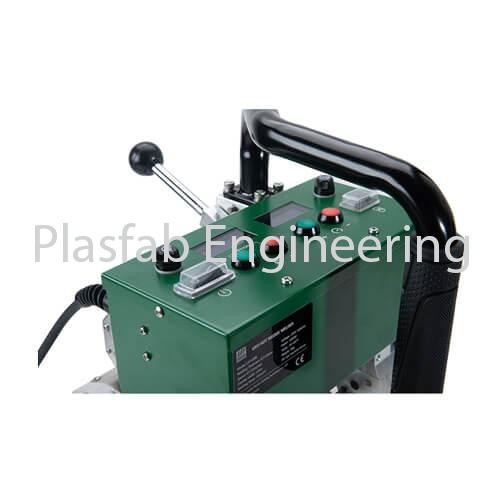

Dual LCD displays welding temperature and welding speed.

Closed loop control system

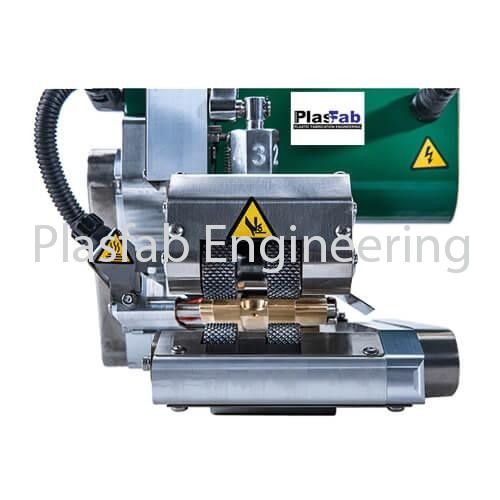

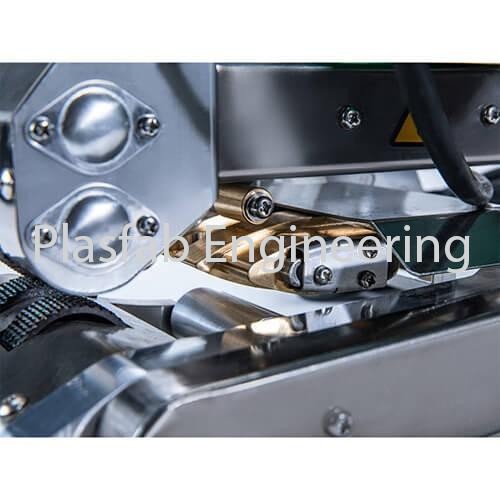

The newly developed wedges have higher heating efficiency and longer service life.


Model LST-GM1
Rated Voltage 230V/120V
Rated Power 1400W
Frequency 50/60HZ
Heating Temperature 50~450℃
Welding Speed 0.5-6.0m/min
Welding pressure 100-1000N
Material Thickness Welded 0.2mm-2.0mm single layer
Seam Width 15mm*2,Interior Cavity 15mm (customized)
Weld Strength ≥85%material
Overlap Width 12cm
Membrane Laying Ways Membrane laying way by one edge against the other edge
Digital display function Temperature and speed dual display
Body weight 9kg
Warranty 1 year


HDPE (1.5mm) geomembrane for mining

LST-GM1 type
