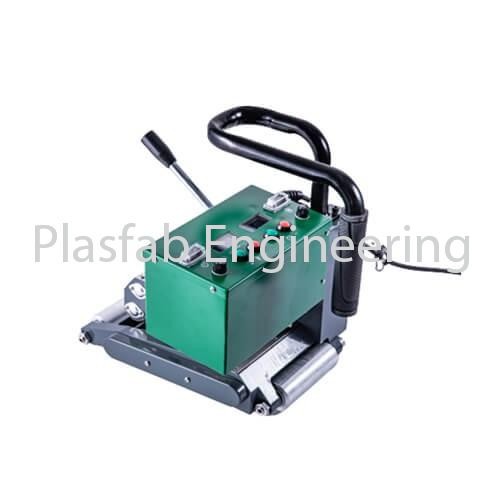

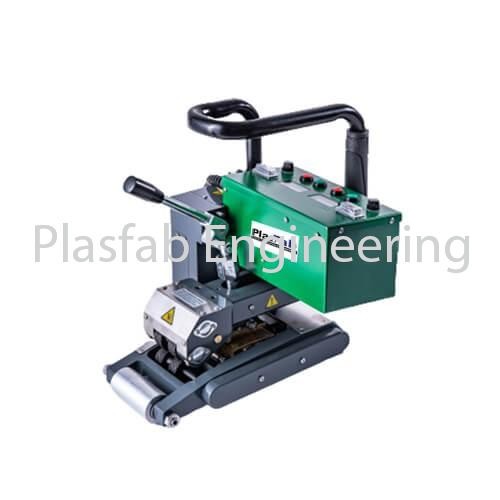

Dual Display Professional Geomembrane Welding Machine PFE900D

• Digital display heavy-duty hot wedge welding machine.

• The welding machine adopts advanced heat sheet structure, high power, high pressure, fast welding speed, suitable for 1.0-3.0mm thick film material welding machine, suitable for HDPE, LDPE, PVC, EVA, ECB, PP and other heat Melting materials, products are used in water conservancy, aquaculture, landfill, chemical and mining, sewage treatment and other fields, and roofing construction and other fields of waterproof and anti-seepage projects.

• This machine can not only display the welding temperature and welding speed, but the control system adopts closed-loop control, regardless of the external voltage change, or the welding direction up or down under the change of the external environment, such as negative feedback automatically adjusts the set temperature and speed, so that The welding parameters are more stable and the welding quality is more reliable.

• Meet the voltage requirements of 120V and 230V in different countries and the plug requirements of EU standards, American standards, and British standards.

• Accept small orders.

• Satisfy small batch customization services.

• The fault code is displayed.

• Third-party CE certification test.

Categories: ,

ADVANTAGE

Temperature and speed closed loop system

This machine adopts a temperature and speed double closed-loop control system to accurately control the welding temperature and welding speed. Even when the power supply voltage has small fluctuations and the ambient temperature changes, it can automatically adjust to ensure welding quality

Dual LCD display

The control panel consists of two LCD screens respectively showing temperature and speed. It is convenient to check the set temperature and actual temperature, set speed and actual speed at any time. Add and subtract buttons for easy adjustment.

Pressure regulation system

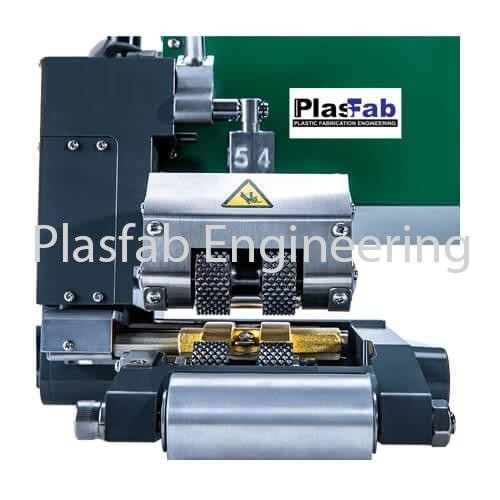

The advanced T-shaped cantilever head design and pressure adjustment mechanism ensure that the left and right weld bead pressures are balanced, the weld seam is uniform, and the welding pressure is continuously adjustable.

Heating system

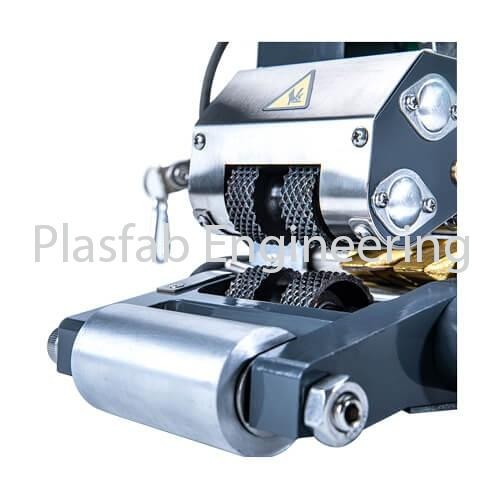

Super alloy wedge knife and unique heating design, high heating efficiency, good welding performance and long service life.

Specifications

Model LST900D
Rated Voltage 230V/120V
Rated Power 1800W/1650W
Frequency 50/60HZ
Heating Temperature 50~450℃
Welding Speed 1.0-5m/min
Material Thickness Welded 1.0mm-3.0mm(single layer)
Seam Width 15mm*2,Interior Cavity 15mm
Weld Strength ≥85% material
Overlap Width 12cm
Digital Display Temperature and speed dual display
Welding pressure 100-1000N
Body weight 13kg
Warranty 1 year
