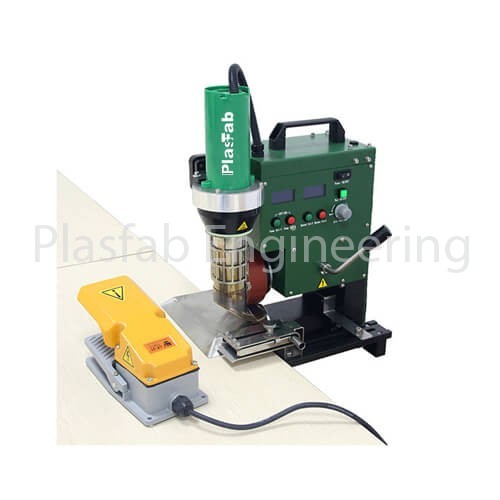

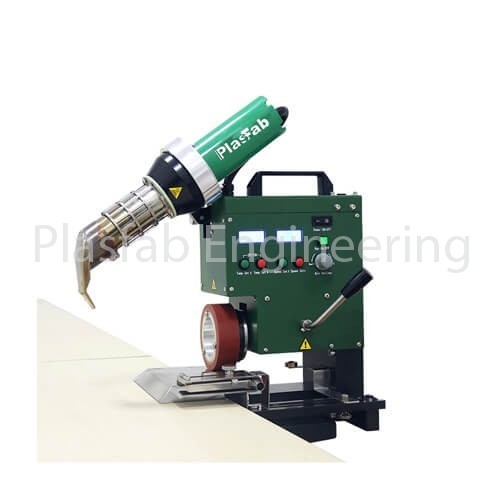

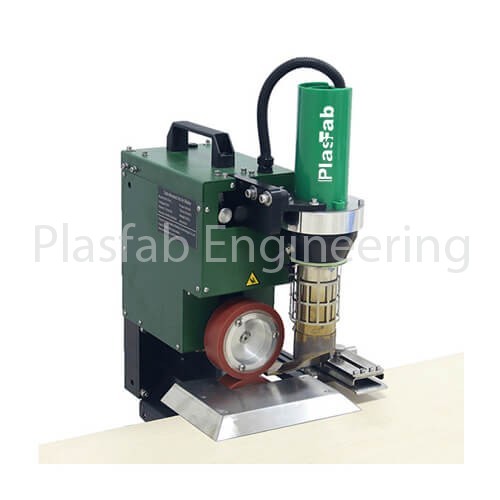

Desktop Welding Machine PFE-PAU

The welding machine adopts a stepless pressure-adjusting pressing wheel system and an intelligent operation control panel, and is widely used in the folding and stringing welding of advertising printing cloth and industrial tarpaulin. The operation is simple, the welding speed is fast and the welding effect is good. It can be quickly installed on the sitting or vertical work surface, saving the preparation work and supplementary welding time of the handheld welding equipment.

ADVANTAGE

1. Folding guide

Three welding applications can be realized: closed hemming (20/30/40mm optional), rope hemming, and open hemming up to 180mm.



2. Intelligent control system

The intelligent digital control system is simple, intuitive and convenient to operate.



Three, desktop fixing frame

The machine can be quickly and conveniently fixed on the sitting or vertical workbench through the quick-locking parts.



Four, pedal design

Use foot pedals to free your hands for guiding materials



Five, pressing wheel

The operating handle can provide sufficient pressure to easily cope with the welding of materials of different thicknesses. Nozzles and pressing wheels of various sizes can be customized to meet the different needs of users.

Specifications

model

LST-PAU

Input voltage

230V/120V

frequency

50/60HZ

power

600W/2300W

Welding speed

1.0-12.0m/min

Heating temperature

50-620℃

Weld width

20/30/40mm

Total Weight

20.0kg

Motor

Brushless

Certification

CE

Warranty

1 year

Application

Desktop Folding Welding Machine

LST-PAU

Desktop Hot Air Threading Welding Machine

LST-PAU
