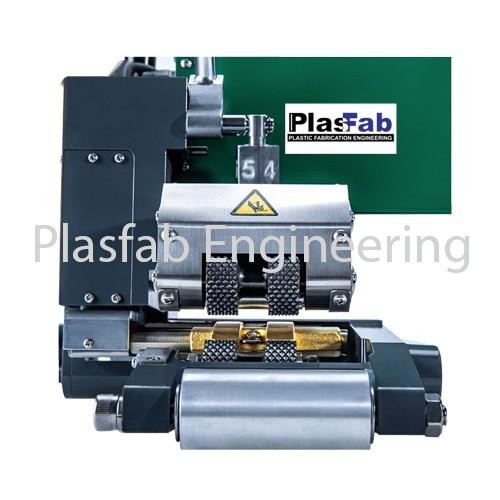

Heavy Geographically Heated Wedge Welder Model PFE900

• Heavy-duty hot wedge welding machine.

• The welding machine adopts advanced hot wedge structure, which has high heating efficiency and fast welding speed. Especially suitable for 1.0-3.0mm thick HDPE film materials. Products are used in water conservancy, aquaculture, landfill, chemical mining, sewage treatment, roofing construction and other fields of waterproof and seepage engineering.

• Closed loop control system.

• The operation is simple and intuitive, heating temperature closed-loop control, on-site working voltage display, real-time monitoring of working parameters.

• Pressure regulation system.

• It is convenient to choose the appropriate pressure according to the thickness of the material. The T-shaped cantilever head design ensures pressure.

• Accept small orders.

• Satisfy small batch customization services.

• Meet the voltage requirements of 120V and 230V in different countries and the plug requirements of EU standards, American standards, and British standards.

• Third-party CE certification test.

Categories: ,

ADVANTAGE

Closed loop control system

The operation is simple and intuitive, heating temperature closed-loop control, on-site working voltage display, real-time monitoring of working parameters.

High torque transmission system

The high-torque motor adopts a precise two-group transmission mechanism, which can easily realize large-slope crawling and relatively harsh construction environment.

Pressure regulation system

The advanced T-shaped cantilever head design and pressure adjustment mechanism ensure that the left and right weld bead pressures are balanced, the weld seam is uniform, and the welding pressure is continuously adjustable.

roller

Special steel pressure roller, strong pressure, non-slip, durable

Newly upgraded heating system

The hot wedge structure is stronger, can increase the contact area with the welding material, and increase the welding efficiency by 30%.

Specifications

Model LST900
Rated Voltage 230V/120V
Rated Power 1800W/1650W
Frequency 50/60HZ
Heating Temperature 50~450℃
Welding Speed 1.0-5m/min
Material Thickness Welded 1.0mm-3.0mm(single layer)
Seam Width 15mm*2,Interior Cavity 15mm
Weld Strength ≥85% material
Overlap Width 12cm
Digital Display temperature display
Welding pressure 100-1000N
Body weight 13kg
Warranty 1 year

Application

HDPE (2.0mm) geomembrane, solid waste landfill

LST900 type
